谁有维氏、布氏、洛氏硬度对照表啊？

opeth · 发表于 2007-9-10 20:20:34

传过来一张谢谢

fcjyiong · 发表于 2007-9-11 12:52:57

标准库中有GB/T1172

xiaozhu0607 · 发表于 2007-10-4 09:56:21

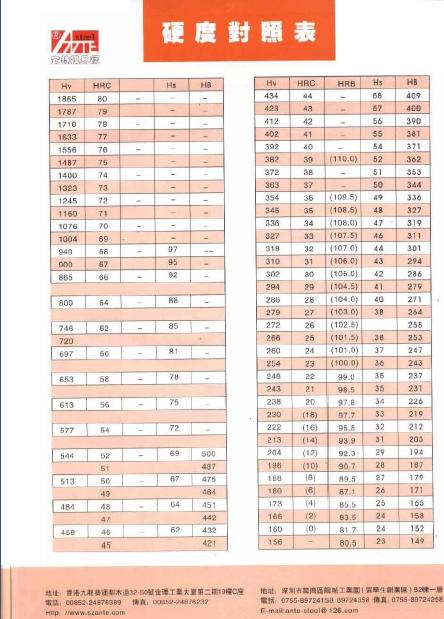

常用维氏、布氏、洛氏硬度的换算表
http://www.rclbbs.com/viewthread ... =%E7%A1%AC%E5%BA%A6
金属硬度转换表
http://www.rclbbs.com/viewthread ... =%E7%A1%AC%E5%BA%A6

[ 本帖最后由 xiaozhu0607 于 2007-10-4 09:58 编辑 ]

yyl99169 · 发表于 2007-10-5 10:42:39

我这里也有一份，拿出来大家看看。

硬度对照表
时间: 2005-12-03 16:07:10 | [<<] [>>]
________________________________________

钢的布氏硬度的近似换算值本站:硬度计

布氏硬度(HB)
10mm 3000kgf 维
氏
硬
度
(HV) 洛氏硬度(3) 肖
氏
硬
度
(HS) 抗拉强度
(近似值)MPa(2)
标准球碳化钨球洛氏硬度A
载荷60kgf
金刚石圆锥
压印头
(HRA) 洛氏硬度B
载荷100kgf
刚球?1.6mm球
(1/16in)
(HRB) 洛氏硬度C
载荷100kgf
金刚石圆锥
压印头
(HRC) 洛氏硬度D
载荷150kgf
金刚石圆锥
压印头
(HRD)
- - 940 85.6 - 68.0 76.9 97 -
- - 920 85.3 - 67.5 76.5 96 -
- - 900 85.0 - 67.0 76.1 95 -
- (767) 880 84.7 - 66.4 75.7 93 -
- (757) 860 84.4 - 65.9 75.3 92 -

- (745) 840 84.1 - 65.3 74.8 91 -
- (733) 820 83.8 - 64.7 74.3 90 -
- (722) 800 83.4 - 64.0 73.8 88 -
- (712) - - - - - - -
- (710) 780 83.0 - 63.3 73.3 87 -
- (698) 760 82.6 - 62.5 72.6 86 -

- (684) 740 82.2 - 61.8 72.1 - -
- (682) 737 82.2 - 61.7 72.0 84 -
- (670) 720 81.8 - 61.0 71.5 83 -
- (656) 700 81.3 - 60.1 70.8 - -
- (653) 697 81.2 - 60.0 70.7 81 -

- (647) 690 81.1 - 59.7 70.5 - -
- (638) 680 80.8 - 59.2 70.1 80 -
- 630 670 80.6 - 58.8 69.8 - -
- 627 667 80.5 - 58.7 69.7 79 -

- - 677 80.7 - 59.1 70.0 - -
- 601 640 79.8 - 57.3 68.7 77 -

- - 640 79.8 - 57.3 68.7 - -
- 578 615 79.1 - 56.0 67.7 75 -

- - 607 78.8 - 55.6 67.4 - -
- 555 591 78.4 - 54.7 66.7 73 2055

- - 579 78.0 - 54.0 66.1 - 2015
- 534 569 77.8 - 53.5 65.8 71 1985

- - 533 77.1 - 52.5 65.0 - 1915
- 514 547 76.9 - 52.1 64.7 70 1890

(495) - 539 76.7 - 51.6 64.3 - 1855
- - 530 76.4 - 51.1 63.9 - 1825
- 495 528 76.3 - 51.0 63.8 68 1820

(477) - 516 75.9 - 50.3 63.2 - 1780
- - 508 75.6 - 49.6 62.7 - 1740
- 477 508 75.6 - 49.6 62.7 66 1740

(461) - 495 75.1 - 48.8 61.9 - 1680
- - 491 74.9 - 48.5 61.7 - 1670
- 461 491 74.9 - 48.5 61.7 65 1670

444 - 474 74.3 - 47.2 61.0 - 1595
- - 472 74.2 - 47.1 60.8 - 1585
- 444 472 74.2 - 47.1 60.8 63 1585

429 429 455 73.4 - 45.7 59.7 61 1510
415 415 440 72.8 - 44.5 58.8 59 1460
401 401 425 72.0 - 43.1 57.8 58 1390
388 388 410 71.4 - 41.8 56.8 56 1330
375 375 396 70.6 - 40.4 55.7 54 1270

363 363 383 70.0 - 39.1 54.6 52 1220
352 352 372 69.3 (110.0) 37.9 53.8 51 1180
341 341 360 68.7 (109.0) 36.6 52.8 50 1130
331 331 350 68.1 (108.5) 35.5 51.9 48 1095
321 321 339 67.5 (108.0) 34.3 51.0 47 1060

311 311 328 66.9 (107.5) 33.1 50.0 46 1025
302 302 319 66.3 (107.0) 32.1 49.3 45 1005
293 293 309 65.7 (106.0) 30.9 48.3 43 970
285 285 301 65.3 (105.5) 29.9 47.6 - 950
277 277 292 64.6 (104.5) 28.8 46.7 41 925

269 269 284 64.1 (104.0) 27.6 45.9 40 895
262 262 276 63.6 (103.0) 26.6 45.0 39 875
255 255 269 63.0 (102.0) 25.4 44.2 38 850
248 248 261 62.5 (101.0) 24.2 43.2 37 825
241 241 253 61.8 100 22.8 42.0 36 800

235 235 247 61.4 99.0 21.7 41.4 35 785
229 229 241 60.8 98.2 20.5 40.5 34 765
223 223 234 - 97.3 (18.8) - -
217 217 228 - 96.4 (17.5) - 33 725
212 212 222 - 95.5 (16.0) - - 705

207 207 218 - 94.6 (15.2) - 32 690
201 201 212 - 93.8 (13.8) - 31 675
197 197 207 - 92.8 (12.7) - 30 655
192 192 202 - 91.9 (11.5) - 29 640
187 187 196 - 90.7 (10.0) - - 620

183 183 192 - 90.0 (9.0) - 28 615
179 179 188 - 89.0 (8.0) - 27 600
174 174 182 - 87.8 (6.4) - - 585
170 170 178 - 86.8 (5.4) - 26 570
167 167 175 - 86.0 (4.4) - - 560

163 163 171 - 85.0 (3.3) - 25 545
156 156 163 - 82.9 (0.9) - - 525
149 149 156 - 80.8 - - 23 505
143 143 150 - 78.7 - - 22 490
137 137 143 - 76.4 - - 21 460

131 131 137 - 74.0 - - - 450
126 126 132 - 72.0 - - 20 435
121 121 127 - 69.8 - - 19 415
116 116 122 - 67.6 - - 18 400
111 111 117 - 65.7 - - 15 385

huangkangsheng · 发表于 2009-1-17 13:28:23

硬度换算表: 布氏硬度与洛氏硬度
布氏硬度洛氏硬度抗拉强度布氏硬度洛氏硬度抗拉强度
硬质合金球 3000kg 标尺A
60kg 标尺B
100kg 标尺C
150kg (约磅/英寸2) 硬质合金球 3000kg 标尺A
60kg 标尺B
100kg 标尺C
150kg (约磅/英寸2)
- 85.6 - 68.0 - 331 68.1 - 35.5 166,000
- 85.3 - 67.5 - 321 67.5 - 34.3 160,000
- 85.0 - 67.0 - 311 66.9 - 33.1 155,000
767 84.7 - 66.4 - 302 66.3 - 32.1 150,000
757 84.4 - 65.9 - 293 65.7 - 30.9 145,000
745 84.1 - 65.3 - 285 65.3 - 29.9 141,000
733 83.8 - 64.7 - 277 64.6 - 28.8 137,000
722 83.4 - 64.0 - 269 64.1 - 27.6 133,000
712 - - - - 262 63.6 - 26.6 129,000
710 83.0 - 63.3 - 255 63.0 - 25.4 126,000
698 82.6 - 62.5 - 248 62.5 - 24.2 122,000
684 82.2 - 61.8 - 241 61.8 100.0 22.8 118,000
682 82.2 - 61.7 - 235 61.4 99.0 21.7 115,000
670 81.8 - 61.0 - 229 60.8 98.2 20.5 111,000
656 81.3 - 60.1 - 223 - 97.3 20.0 -
653 81.2 - 60.0 - 217 - 96.4 18.0 105,000
647 81.1 - 59.7 - 212 - 95.5 17.0 102,000
638 80.8 - 59.2 329,000 207 - 94.6 16.0 100,000
630 80.6 - 58.8 324,000 201 - 93.8 15.0 98,000
627 80.5 - 58.7 323,000 197 - 92.8 - 95,000
601 79.8 - 57.3 309,000 192 - 91.9 - 93,000
578 79.1 - 56.0 297,000 187 - 90.7 - 90,000
555 78.4 - 54.7 285,000 183 - 90.0 - 89,000
534 77.8 - 53.5 274,000 179 - 89.0 - 87,000
514 76.9 - 52.1 263,000 174 - 87.8 - 85,000
495 76.3 - 51.0 253,000 170 - 86.8 - 83,000
477 75.6 - 49.6 243,000 167 - 86.0 - 81,000
461 74.9 - 48.5 235,000 163 - 85.0 - 79,000
444 74.2 - 47.1 225,000 156 - 82.9 - 76,000
429 73.4 - 45.7 217,000 149 - 80.8 - 73,000
415 72.8 - 44.5 210,000 143 - 78.7 - 71,000
401 72.0 - 43.1 202,000 137 - 76.4 - 67,000
388 71.4 - 41.8 195,000 131 - 74.0 - 65,000
375 70.6 - 40.4 188,000 126 - 72.0 - 63,000
363 70.0 - 39.1 182,000 121 - 69.8 - 60,000
352 69.3 - 37.9 176,000 116 - 67.6 - 58,000
341 68.7 - 36.6 170,000 111 - 65.7 - 56,000
